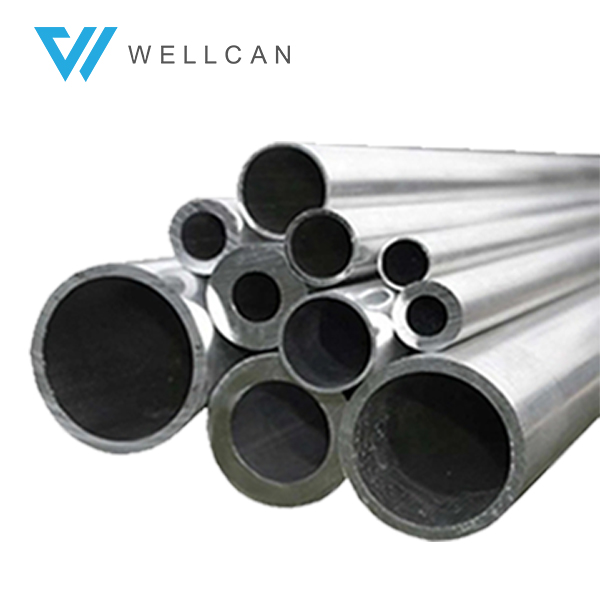

Aluminum seamless pipes

Specification

Brand name :Wellcan	Material: aluminum alloy
Alloy: 2A11,2024,2011； 3003,3021； 4032； 5A02,5052,5A03,5083,5A05,5A06； 6063, 6061, 6082； 7A04,7005,7020,7475,7A09	Temper:T3/T4/T5/T6/H112/F
Surface treatment :Mill finished	Application: wide used
Packing materials: paper, plastic film, carton box	MOQ:2tons/item

Process flow:

1. Melting: Aluminum ingot — Melting — Casting — Cutting —Round ingot billet —Bore a hole.

2. Extrusion: Billet with hole —Extrusion — Pre-pull— Quenching — Pull — Cutting — aging— Fill finish

3. Surface treatment: Mill finish

Description:

Material	2A11,2024,2011；3003,3021；4032；5A02,5052,5A03,5083,5A05,5A06；6063, 6061, 6082；7A04,7005,7020,7475,7A09
Surface	Mill finished
Length	3-12 Meters
Packing	1) EPE, waterproof paper wrapped in bundles. 2) Paper interleave each piece and packing in wooden strap box and then on trolley to pull into container.
Sample delivery	Two weeks(one week for mould +one week making sample)
Extruder machine	Minimum extruder machine:800tons ,Maximum :10000tons
MOQ	1*20ft full container
Delivery time	30-40 days if the mould is ready
Payment terms	T/T or L/C
Normal order sequence	1. Confirm the drawings ,samples and price . 2. Pay the mould fee and we start to make moulds and samples; we send samples to you for confirmation;(If our factory has ready-made moulds available , this step can be omitted) 3. After receipt of 30% deposit ,start production; 4. Delivery

Mechanical property:

Alloy

Temper

Dimension mm

e

Rm Mpa

Rp0.2 Mpa

A

%

min

A50

mm%

Min

min

max

min

max

2011

T6

≤25

310

---

230

---

6

4

2024

T3/ T3510/T3511

≤30

420

---

290

---

8

6

3003

F/H112

all

95

---

35

---

25

20

5052

F/H112

all

170

---

70

---

15

13

5083

F/H112

all

270

---

110

---

12

10

6061

T4

≤25

180

---

110

---

15

13

6061

T6

≤5

5

260

260

---

240

240

---

8

10

6

8

6063

T4

≤10
10

130

120

---

---

65

65

---

---

14

12

12

10

6063

T5

≤25

175

---

130

---

8

6

6063

T6

≤25

215

---

170

---

10

8

6082

T4

≤20

205

---

110

---

14

12

6082

T6

≤5
5

295

310

---

---

250

260

---

---

8

10

6

8

7005

T6

≤15

350

---

290

---

10

8

7020

T6

≤15

350

---

290

---

10

8

Back

Alloy	Temper	Dimension mm e	Rm Mpa		Rp0.2 Mpa		A % min	A50 mm% Min
Alloy	Temper	Dimension mm e	min	max	min	max	A % min	A50 mm% Min
2011	T6	≤25	310	---	230	---	6	4
2024	T3/ T3510/T3511	≤30	420	---	290	---	8	6
3003	F/H112	all	95	---	35	---	25	20
5052	F/H112	all	170	---	70	---	15	13
5083	F/H112	all	270	---	110	---	12	10
6061	T4	≤25	180	---	110	---	15	13
6061	T6	≤5 5	260 260	---	240 240	---	8 10	6 8
6063	T4	≤10 10	130 120	--- ---	65 65	--- ---	14 12	12 10
6063	T5	≤25	175	---	130	---	8	6
6063	T6	≤25	215	---	170	---	10	8
6082	T4	≤20	205	---	110	---	14	12
6082	T6	≤5 5	295 310	--- ---	250 260	--- ---	8 10	6 8
7005	T6	≤15	350	---	290	---	10	8
7020	T6	≤15	350	---	290	---	10	8
